Automatic Gabion Mesh Machine
Automatic Gabion Mesh Machine;Gabion machine; gabion mesh making machine;hexagonal wire netting machine Automatic Gabion Mesh Machine Production Line;

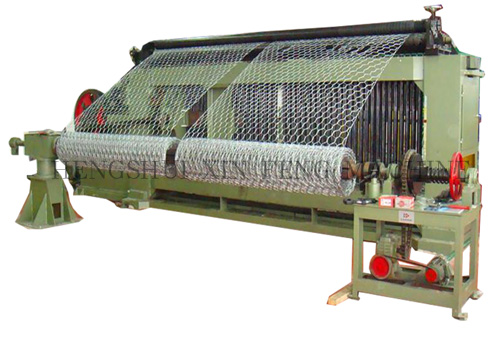

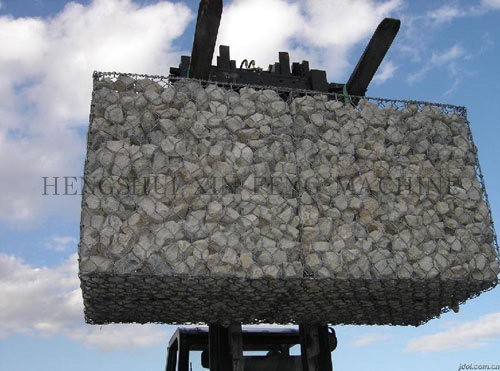

XFH-2 series hengshui xinfeng gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available. The Gabion Mesh Machine can provide gabion mesh products for various kinds of construction items. The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection, build retaining walls, river bank protections, weirs, gabion boxes mattresses, etc.
|
Type |
Mesh opening |
Max Width |
Wire Diameter |
Strand |
Speed |
Power |
Theory speed |
XFH 23-60-2 |
60*80 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
165 m/h |
XFH 23-80-2 |
80*100 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
195 m/h |
XFH 23-100-2 |
100*120 mm |
2300 mm |
1.6-4 mm |
3 |
25 r/min |
11 kw |
225 m/h |
XFH -23-120-2 |
120*150 mm |
2300 mm |
1.6-4mm |
3 |
20 r/min |
11 kw |
225 m/h |
XFH 33-60-2 |
60*80 mm |
3300 mm |
1.6-4mm |
3 |
25 r/min |
15 kw |
165 m/h |
XFH 33-80-2 |
80*100 mm |
3300 mm |
1.6-4 mm |
3 |
25 r/min |
15 kw |
195 m/h |
XFH 33-100-2 |
100*120 mm |
3300 mm |
1.6-4 |
3 |
25 r/min |
15 kw |
225 m/h |
XFH 33-120-2 |
120*150 mm |
3300 mm |
1.6-4 |
3 |
20 r/min |
15 kw |
225 m/h |
XFH 43-60-2 |
60*80 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
165 m/h |
XFH 43-80-2 |
80*100 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
195 m/h |
XFH 43-100-2 |
100*120 mm |
4300 mm |
1.6-4 |
3 |
25 r/min |
22 kw |
225 m/h |
XFH 43-120-2 |
120*150 mm |
4300 mm |
1.6-4 |
3 |
20 r/min |
22 kw |
225 m/h |
E-mail: sales@china-julunmachine.com
When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
