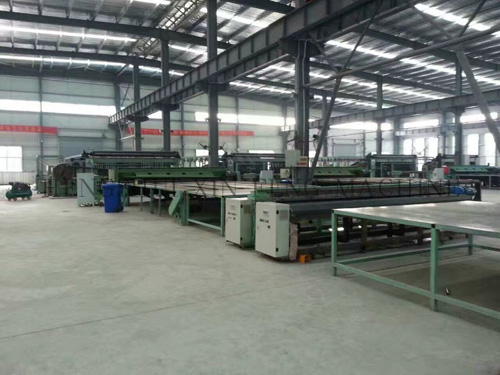

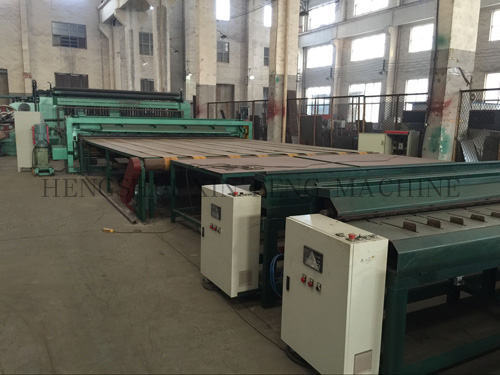

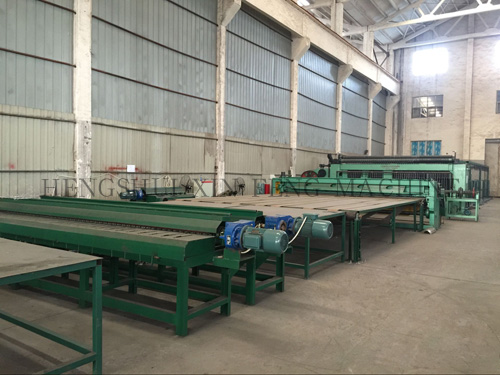

Automatic Gabion Mesh Machine Production Line

Automatic Gabion Mesh Machine Production Line；Gabion Mesh Machine Production Line；Gabion Mesh making Machine Line

Automatic Gabion Mesh Machine Production Line001

Automatic Gabion Mesh Machine Production Line002

Automatic Gabion Mesh Machine Production Line03

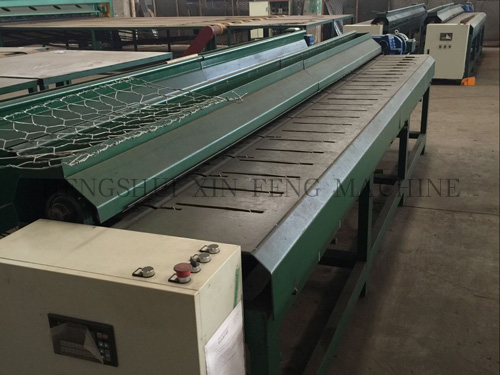

Netting Sheet Straightening and Cutting Machine1

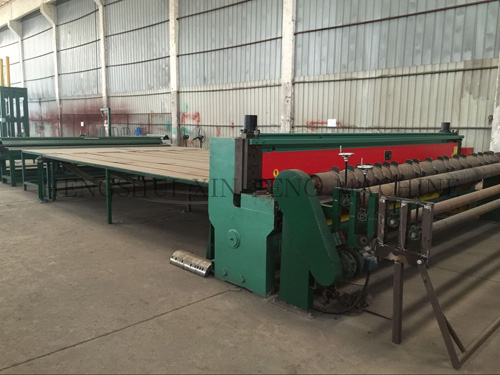

Border Reinforcement & Netting End Winding-up Machine

our Automatic Gabion Mesh Machine Production Line. It could from the weave gabion the mesh-cutting the mesh-convey the mesh-Border Reinforcement & Netting End Winding-up of the mesh 100% automatically.
That could improve the production efficiency and save the production cost. And we would offer our high quality machine and the best service for you.

Type	Mesh opening	Max Width	Wire Diameter	Strand	Speed	Power	Theory speed
XFH 23-60-2	60*80 mm	2300 mm	1.6-4 mm	3	25 r/min	11 kw	165 m/h
XFH 23-80-2	80*100 mm	2300 mm	1.6-4 mm	3	25 r/min	11 kw	195 m/h
XFH 23-100-2	100*120 mm	2300 mm	1.6-4 mm	3	25 r/min	11 kw	225 m/h
XFH -23-120-2	120*150 mm	2300 mm	1.6-4mm	3	20 r/min	11 kw	225 m/h
XFH 33-60-2	60*80 mm	3300 mm	1.6-4mm	3	25 r/min	15 kw	165 m/h
XFH 33-80-2	80*100 mm	3300 mm	1.6-4 mm	3	25 r/min	15 kw	195 m/h
XFH 33-100-2	100*120 mm	3300 mm	1.6-4	3	25 r/min	15 kw	225 m/h
XFH 33-120-2	120*150 mm	3300 mm	1.6-4	3	20 r/min	15 kw	225 m/h
XFH 43-60-2	60*80 mm	4300 mm	1.6-4	3	25 r/min	22 kw	165 m/h
XFH 43-80-2	80*100 mm	4300 mm	1.6-4	3	25 r/min	22 kw	195 m/h
XFH 43-100-2	100*120 mm	4300 mm	1.6-4	3	25 r/min	22 kw	225 m/h
XFH 43-120-2	120*150 mm	4300 mm	1.6-4	3	20 r/min	22 kw	225 m/h

If you need to consult the price, please contact the business department by e-mail:

Julun will service for you !
E-mail: sales@china-julunmachine.com

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
