Reinforced Gabion

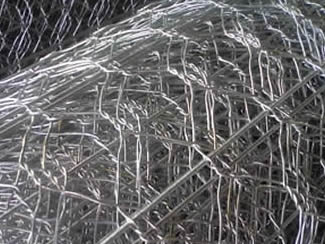

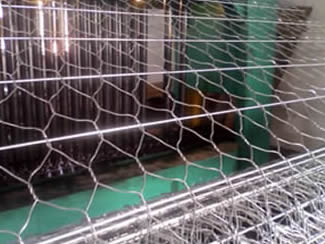

Reinforced gabion is a modification of woven gabion basket. It adds parallel reinforced steel wire within every two neighboring rows. The increased steel wire strengthens dimensional stability and strength against impacts and stress. Simultaneously, reinforced woven gabion inherits all advantages of common woven or twisted gabion, including excellent flexibility, permeability and recyclability.
Galvanized and PVC coated wires are frequent used material which have better performance in resisting rust and corrosion.
Why choose reinforced gabion basket?
- Reinforced steel wire stabilize dimension effectively.
- Improving strength.
- Extend service life substantially.
- Good flexibility changes with the terrain.
- Outstanding permeability allows for water drainage.
Where reinforced gabion can be used?
- Retaining wall
- Water conservancy construction
- Slope reinforcement
- Soil erosion
Reinforced woven gabion Specification:
| Mesh opening (mm) | Wire diameter (mm) | PVC wire/ inner diameter/ outer diameter (mm) | Max width (m) |
| 60 × 80 | φ2-4.0 | 2.0/3.0-2.5/3.5 | 4.3 |
| 80 × 100 | φ2.2-4.0 | 2.0/3.0-2.8/3.8 | 4.3 |
| 80 × 120 | φ2.2-4.0 | 2.0/3.0-2.8/3.8 | 4.3 |
| 100 × 120 | φ2.2-4.0 | 2.0/3.0-2.8/3.8 | 4.3 |
| 100 × 150 | φ2.2-4.0 | 2.0/3.0-2.8/3.8 | 4.3 |
| 120 × 150 | φ2.2-4.0 | 2.0/3.0-3.0/4.0 | 4.3 |
