Green Terramesh System

Green terramesh system - a modular system of ecological soil reinforcement otherwise construction used to secure the unstable sets of soil slopes and embankments slopes with landscaping surfaces. In the formation of structural units of the Green Terra mesh are horizontal layers. Step reinforcement determined in accordance with the project to ensure the sustainability of an array of ground.

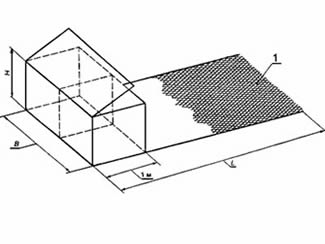

Modules Systems Green Terramesh are prefabricated, consisting of a grid made of wire double twisting, or biodegradable geosynthetic cloth, welded gabion panel and two steel ribs, the shape of which corresponds to the desired angle of inclination of 60-70. For the manufacture of the main body of the module of the terra mesh used wire tight galvanized with PVC coating. The front edge is strengthened by steel rods, PVC coated wire are woven into the production.

On the inside of the outer edge of the module of the  terra mesh attached geosynthetics or biodegradable fabric panel and steel ribs. Geosynthetic enhances soil backfill and creates ideal conditions for rapid revegetation.

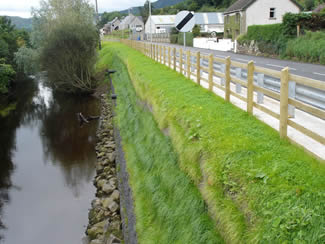

In cases where the slope strengthened by contact with the flowing waters, where the average flow velocity of not less than 3m/s (river banks), or take a long time for revegetation recommended three-dimensional non-biodegradable geosynthetics. In all other cases (slopes, embankments) is recommended to use biodegradable coconut coir or straw. Attached to reinforce the front panel face, holding fabric in place during assembly of the structure.

The most important characteristics of modular systems Terramesh Green are the following: Permeability. Filling the front edge stone provides permeability and porosity of the system that virtually eliminates the hydrostatic pressure;

The strength of the grid is constant on other facets of the system, which eliminates the risk of rupture between the front edge, the more hexagonal grid cells provide better traction. Thus the use of such nets improves the mechanical properties of the soil backfill.

Environmental friendliness. For quick recovery of vegetation is recommended to fill in plot of ground at a distance of 0.65-1m from the front edge of fertile soil. When hydroseeding on the surface of the slope soon after the completion of construction may require additional nutrition and hydration soil backfill. Along with other bioengineering technologies can be used willow cutting insert between the individual modules.

Cost-effectiveness. System modules are filled with green terra mesh available on-site assembly grounds, provided that they meet the necessary engineering and geological characteristics, which significantly reduces the cost of excavation. In addition, the modularity of the system saves time for its installation.
